Agenda

Introduction to Azure DevOps

Azure DevOps

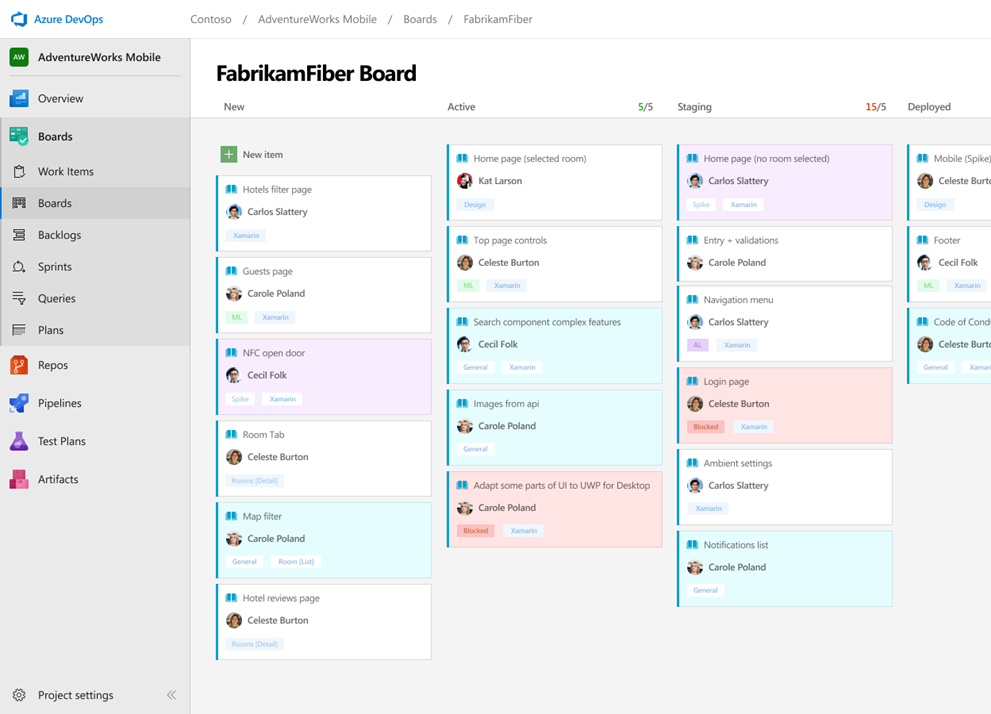

Azure Boards

Agile tools to plan, track, and discuss work across your teams

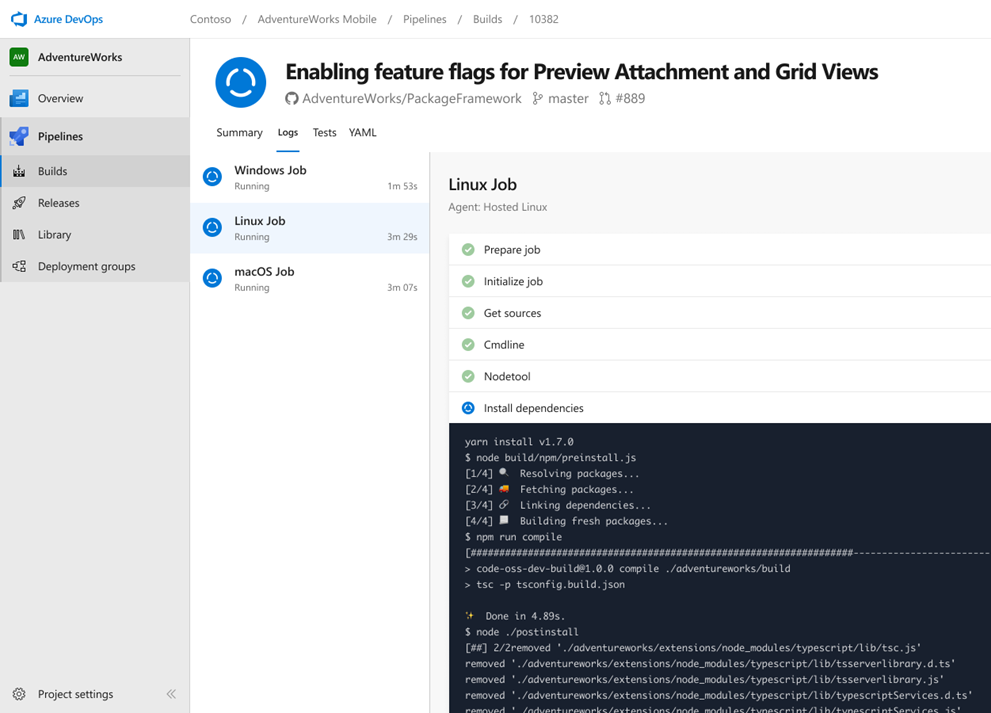

Azure Pipelines

Build, test, and deploy with CI/CD for any language, platform, and cloud

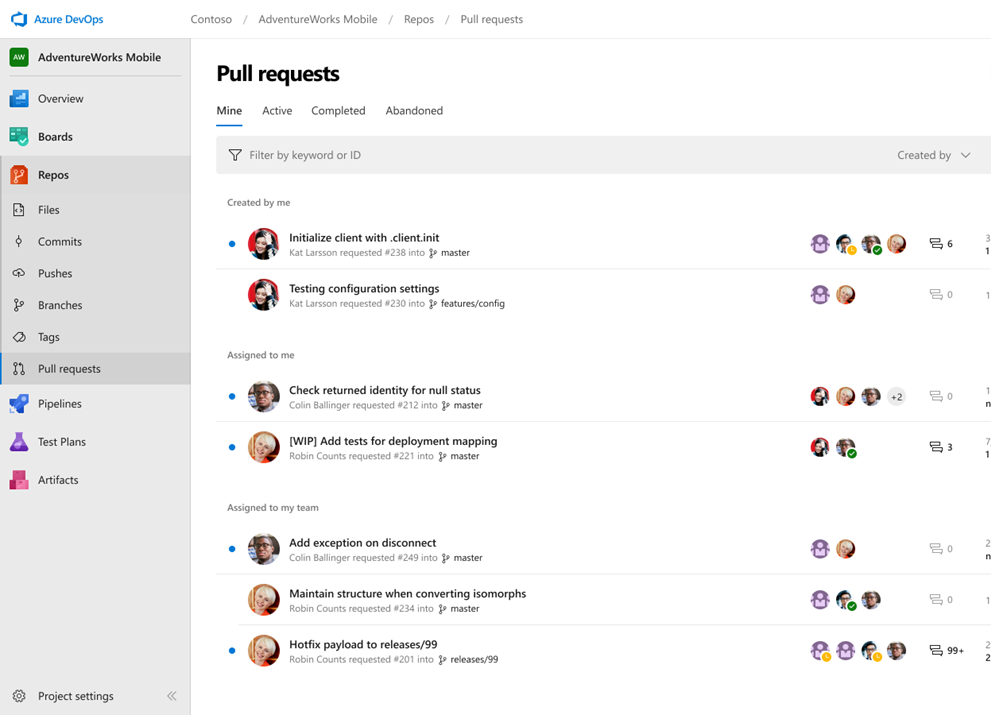

Azure Repos

Unlimited cloud-hosted Git repos with pull requests and advanced file management

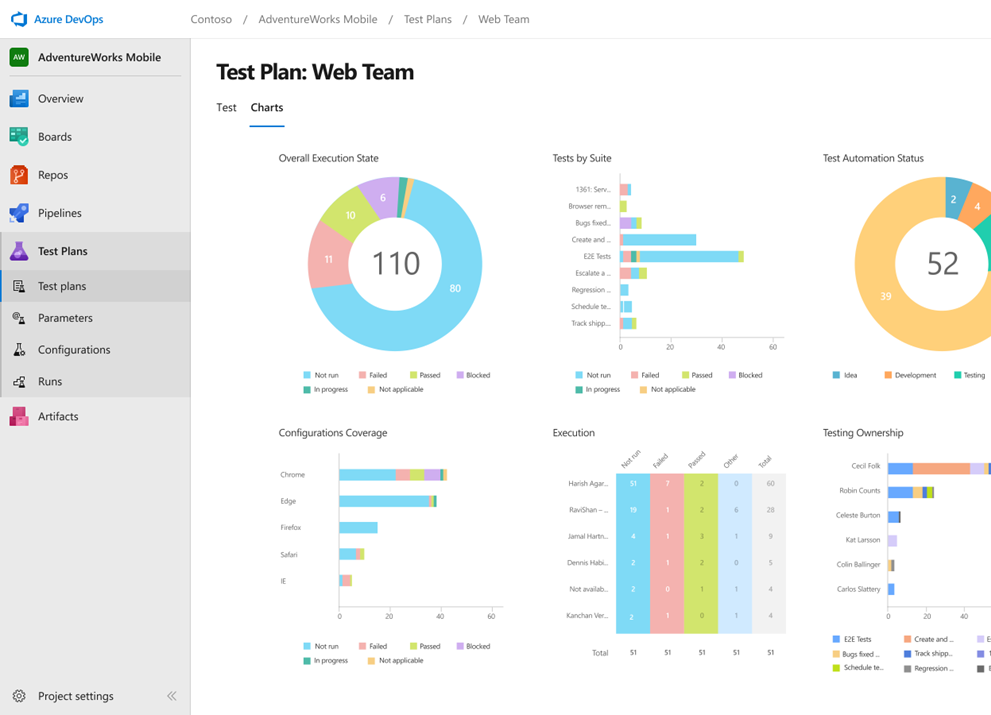

Azure Test Plans

Manual and exploratory testing tools to ship with confidence

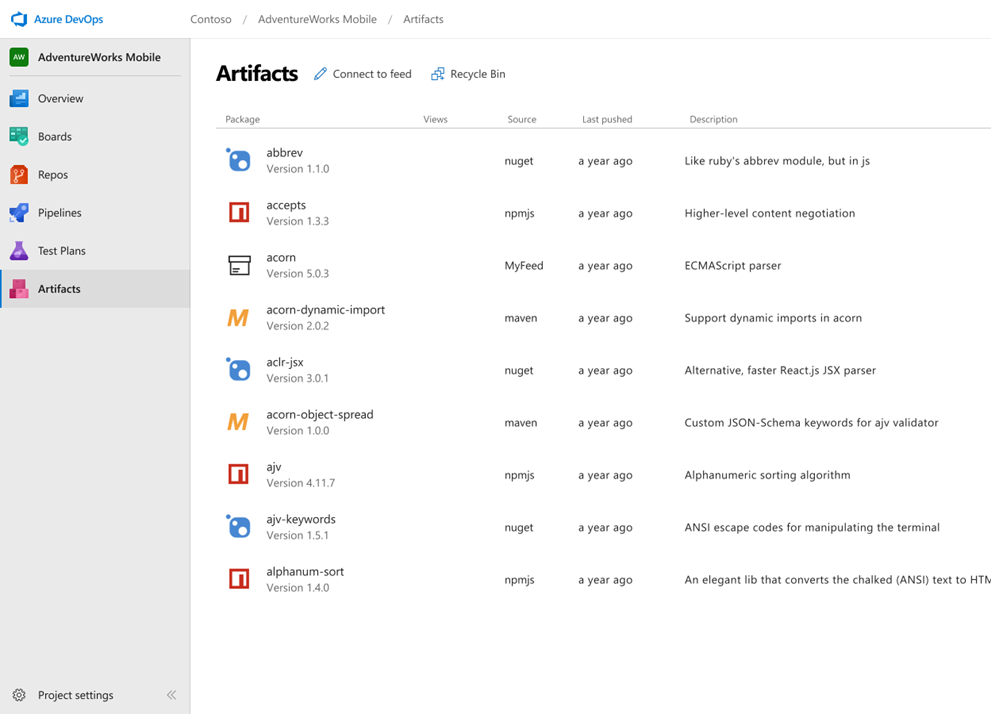

Azure Artifacts

Create, host, and share packages with your team and CI/CD pipelines

Azure Pipelines

What are Azure Pipelines?

• Cloud-hosted CI/CD service in Azure DevOps
• Automates build, test, and deployment
• Works with any language, platform, or cloud
• Pipelines defined as code in YAML
• Version-controlled alongside your source

CI vs CD Pipelines

Why YAML over Classic?

Pipeline Structure

Pipeline Structure

Pipeline Structure

The simplest possible pipeline

trigger:
  - main

pool:
  vmImage: 'ubuntu-latest'

steps:
  - script: echo Hello, world!
    displayName: 'Run a one-line script'


Full Pipeline Hierarchy

trigger:
  - main

stages:
  - stage: Build
    jobs:
      - job: BuildApp
        pool:
          vmImage: 'ubuntu-latest'
        steps:
          - task: DotNetCoreCLI@2
            inputs:
              command: 'build'

  - stage: Deploy
    dependsOn: Build
    jobs:
      - job: DeployApp
        steps:
          - script: echo Deploying...


Stages, Jobs & Steps

Stages

• Logical division of a pipeline (Build, Test, Deploy)
• Run sequentially by default
• Can define dependencies with dependsOn
• Each stage can target different environments

stages:
  - stage: Build
    displayName: 'Build Stage'
  - stage: Test
    dependsOn: Build
  - stage: Deploy
    dependsOn: Test


Jobs

• A unit of work that runs on one agent
• Jobs within a stage run in parallel by default
• Use dependsOn to control ordering
• Each job gets a fresh agent workspace

jobs:
  - job: UnitTests
    pool:
      vmImage: 'ubuntu-latest'
    steps:
      - script: dotnet test

  - job: IntegrationTests
    dependsOn: UnitTests
    steps:
      - script: dotnet test --filter Category=Integration


Steps

• The smallest unit of execution
• Run sequentially within a job
• Three types: script, task, checkout
• Each step runs in its own process on the agent

steps:
  - checkout: self          # Check out source code
  - script: npm install     # Run a script
  - task: PublishBuildArtifacts@1  # Run a task
    inputs:
      pathToPublish: '$(Build.ArtifactStagingDirectory)'


Tasks & Scripts

Tasks

• Pre-packaged, versioned automation units
• Hundreds available in the Marketplace
• Referenced as TaskName@Version
• Inputs configured via the inputs property

steps:
  - task: UseDotNet@2
    inputs:
      packageType: 'sdk'
      version: '8.x'

  - task: DotNetCoreCLI@2
    inputs:
      command: 'build'
      projects: '**/*.csproj'


Script Steps

Three ways to run inline scripts

steps:
  # Cross-platform (runs cmd on Windows, bash on Linux/Mac)
  - script: echo Hello from script
    displayName: 'Cross-platform script'

  # Bash specifically
  - bash: |
      echo "Running on $(Agent.OS)"
      ./run-tests.sh
    displayName: 'Bash script'

  # PowerShell specifically
  - powershell: |
      Write-Host "Building project..."
      dotnet build -c Release
      dotnet build -c Release
    displayName: 'PowerShell script'


Triggers

CI Triggers

Automatically run on code changes

# Simple — trigger on specific branches
trigger:
  - main
  - release/*

# Detailed — include/exclude branches and paths
trigger:
  branches:
    include:
      - main
      - feature/*
    exclude:
      - feature/experimental
  paths:
    include:
      - src/**
    exclude:
      - docs/**


PR Triggers

Run validation on pull requests

pr:
  branches:
    include:
      - main
      - release/*
  paths:
    include:
      - src/**
    exclude:
      - '*.md'


Scheduled Triggers

Run pipelines on a schedule using cron syntax

schedules:
  - cron: '0 2 * * Mon-Fri'
    displayName: 'Weekday 2am build'
    branches:
      include:
        - main
    always: true    # Run even if no changes

  - cron: '0 8 * * Sun'
    displayName: 'Weekly full test'
    branches:
      include:
        - main
    always: false   # Only if changes exist


Variables & Expressions

Variables

Storing and using values in your pipeline

# Inline variables
variables:
  buildConfiguration: 'Release'
  dotnetVersion: '8.x'

steps:
  - script: dotnet build -c $(buildConfiguration)
  - task: UseDotNet@2
    inputs:
      version: $(dotnetVersion)


Variable Scoping

Variables can be scoped at multiple levels

variables:          # Pipeline-level
  globalVar: 'shared'

stages:
  - stage: Build
    variables:      # Stage-level
      stageVar: 'build-only'
    jobs:
      - job: Compile
        variables:  # Job-level
          jobVar: 'compile-only'
        steps:
          - script: |
              echo $(globalVar)   # Works
              echo $(stageVar)    # Works
              echo $(jobVar)      # Works

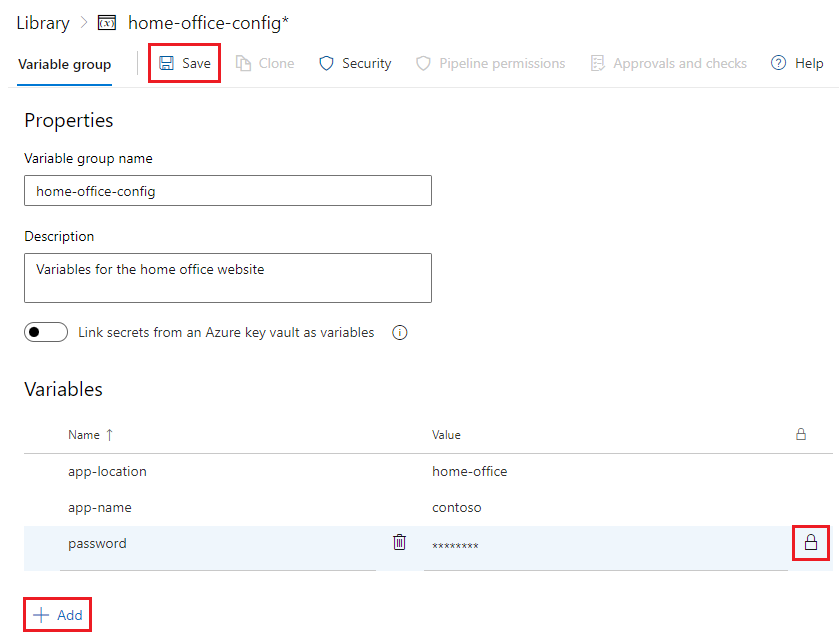

Variable Groups & Secrets

• Variable groups store values in the Azure DevOps UI
• Link to Azure Key Vault for secrets
• Secrets are masked in logs automatically
• Referenced with the group keyword

variables:
- group: home-office-config # name of variable group defined in Azure DevOps

steps:
- script: echo $(app-name) # references variable 'myhello' from the variable group


Predefined Variables

• Azure DevOps automatically sets dozens of variables on every run
• Provide context about the build, repo, agent, and environment
• Referenced with $(Variable.Name) syntax
• Available in YAML values, scripts, and task inputs
• Grouped by prefix: Build.*, System.*, Agent.*, Pipeline.*

Predefined Variables — Build & System

Predefined Variables — Paths & Agent

Conditions & Expressions

Control when stages, jobs, or steps run

steps:
  - script: echo 'Running on main branch'
    condition: eq(variables['Build.SourceBranch'],
                  'refs/heads/main')

  - script: echo 'Previous step failed'
    condition: failed()

stages:
  - stage: DeployProd
    condition: and(succeeded(),
      eq(variables['Build.SourceBranch'],
         'refs/heads/main'))


Agents & Agent Pools

What is an Agent?

• A compute environment that executes your pipeline jobs
• Pipelines define what to do — agents do the actual work
• Each job runs on exactly one agent
• Without an agent, your pipeline has no machine to run on
• Agents are organised into agent pools for management

Agent Pools

• A logical grouping of agents with shared permissions and capabilities
• Pipelines specify a pool, not an individual agent
• Azure DevOps assigns the next available agent from the pool
• Manage capacity by adding or removing agents from a pool
• Set permissions and pipeline access at the pool level

Microsoft-hosted vs Self-hosted Agents

Agents & Agent Pools

Specifying Agent Pools

# Microsoft-hosted — by VM image name
pool:
  vmImage: 'ubuntu-latest'    # or windows-latest, macos-latest

# Self-hosted — by pool name
pool:
  name: 'MySelfHostedPool'
  demands:
    - npm
    - Agent.OS -equals Linux

# Per-job pool selection
jobs:
  - job: LinuxBuild
    pool:
      vmImage: 'ubuntu-latest'
  - job: WindowsBuild
    pool:
      vmImage: 'windows-latest'


Environments & Approvals

Environments

• Named targets for deployment (Dev, Staging, Prod)
• Track deployment history and status, with links to work items
• Attach approvals and checks
• Used with deployment jobs
• Not generally tied to actual infrastructure — a logical concept only

jobs:
  - deployment: DeployWeb
    environment: 'Production'
    strategy:
      runOnce:
        deploy:
          steps:
            - script: echo Deploying to production


Approvals & Checks

• Approvals and checks are defined on environments, not directly in YAML pipelines. Stages in the pipeline are then associated with environments.
• Manual approvals, business hours, branch control
• Pipeline pauses until all checks pass

Approvals & Checks — Full List

Checks run in category order — static first, then approvals, then dynamic

Templates

Templates — Reusing Pipelines

• DRY principle for pipelines
• Define reusable steps, jobs, or stages
• Accept parameters for customization
• Share across repos via resources
• Enforce governance with extends

Step Template

# templates/build-steps.yml
parameters:
  - name: configuration
    default: 'Release'

steps:
  - task: UseDotNet@2
    inputs:
      version: '8.x'
  - script: |
      dotnet build \
        -c ${{ parameters.configuration }}


# azure-pipelines.yml
steps:
  - template: templates/build-steps.yml
    parameters:
      configuration: 'Debug'


Job & Stage Templates

# templates/deploy-stage.yml
parameters:
  - name: environment
    type: string
  - name: vmImage
    default: 'ubuntu-latest'

stages:
  - stage: Deploy_${{ parameters.environment }}
    jobs:
      - deployment: Deploy
        environment: ${{ parameters.environment }}
        pool:
          vmImage: ${{ parameters.vmImage }}
        strategy:
          runOnce:
            deploy:
              steps:
                - script: echo Deploying to ${{ parameters.environment }}


Using Stage Templates

# azure-pipelines.yml
trigger:
  - main

stages:
  - stage: Build
    jobs:
      - job: BuildApp
        steps:
          - script: dotnet build

  - template: templates/deploy-stage.yml
    parameters:
      environment: 'Staging'

  - template: templates/deploy-stage.yml
    parameters:
      environment: 'Production'


Extends vs Include Templates

Two fundamentally different approaches

Extends Template — How It Works

# templates/secure-pipeline.yml
parameters:
  - name: buildSteps
    type: stepList
    default: []

stages:
  - stage: Build
    jobs:
      - job: Build
        steps:
          - task: CredScan@3
          - ${{ each step in parameters.buildSteps }}:
            - ${{ step }}
          - task: PublishSecurityAnalysis@0


# azure-pipelines.yml
trigger:
  - main

extends:
  template: templates/secure-pipeline.yml
  parameters:
    buildSteps:
      - script: dotnet build
      - script: dotnet test


Enforcing Extends with Checks

• Use the Required Template check on environments
• Pipeline must extend an approved template to deploy
• Prevents teams from bypassing governance
• Combine with branch control for full protection

Cross-Repo Templates

Share templates across repositories

resources:
  repositories:
    - repository: templates
      type: git
      name: MyProject/pipeline-templates
      ref: refs/tags/v1.0

stages:
  - template: stages/build.yml@templates
    parameters:
      solution: '**/*.sln'

  - template: stages/deploy.yml@templates
    parameters:
      environment: 'Production'


Service Connections & Artifacts

Service Connections

• Secure links to external services
• Azure, Docker, Kubernetes, npm, NuGet, etc.
• Managed in Project Settings
• Credentials stored securely — never in YAML

steps:
  - task: AzureWebApp@1
    inputs:
      azureSubscription: 'my-azure-connection'
      appName: 'my-web-app'
      package: '$(Build.ArtifactStagingDirectory)/**/*.zip'


Pipeline Artifacts

Pass files between jobs and stages

# Publish artifacts in the Build stage
- task: PublishPipelineArtifact@1
  inputs:
    targetPath: '$(Build.ArtifactStagingDirectory)'
    artifact: 'drop'

# Download artifacts in the Deploy stage
- task: DownloadPipelineArtifact@2
  inputs:
    artifact: 'drop'
    path: '$(Pipeline.Workspace)/drop'


Putting It All Together

A complete CI/CD pipeline

trigger:
  branches:
    include: [ main ]

variables:
  buildConfiguration: 'Release'

stages:
  - stage: Build
    jobs:
      - job: BuildAndTest
        pool: { vmImage: 'ubuntu-latest' }
        steps:
          - task: UseDotNet@2
            inputs: { version: '8.x' }
          - script: dotnet build -c $(buildConfiguration)
          - script: dotnet test --no-build
          - task: PublishPipelineArtifact@1
            inputs:
              targetPath: '$(Build.ArtifactStagingDirectory)'
              artifact: 'drop'

  - stage: DeployStaging
    dependsOn: Build
    jobs:
      - deployment: Deploy
        environment: 'Staging'
        strategy:
          runOnce:
            deploy:
              steps:
                - task: AzureWebApp@1
                  inputs:
                    azureSubscription: 'azure-conn'
                    appName: 'myapp-staging'

  - stage: DeployProd
    dependsOn: DeployStaging
    condition: eq(variables['Build.SourceBranch'], 'refs/heads/main')
    jobs:
      - deployment: Deploy
        environment: 'Production'
        strategy:
          runOnce:
            deploy:
              steps:
                - task: AzureWebApp@1
                  inputs:
                    azureSubscription: 'azure-conn'
                    appName: 'myapp-prod'


Best Practices

Best Practices

• Use templates to avoid duplication
• Pin task versions — Task@2 not Task
• Store secrets in Variable Groups or Key Vault
• Use path triggers to avoid unnecessary runs
• Add meaningful displayName to all steps

More Best Practices

• Use extends templates for governance
• Keep pipelines small — compose with templates
• Use environments with approvals for production
• Test pipeline changes in feature branches
• Document non-obvious pipeline logic in comments

Key Takeaways

Resources

Hands-On Lab

Build a CI/CD pipeline with Azure DevOps & Bicep

Questions?

Thank you for attending
